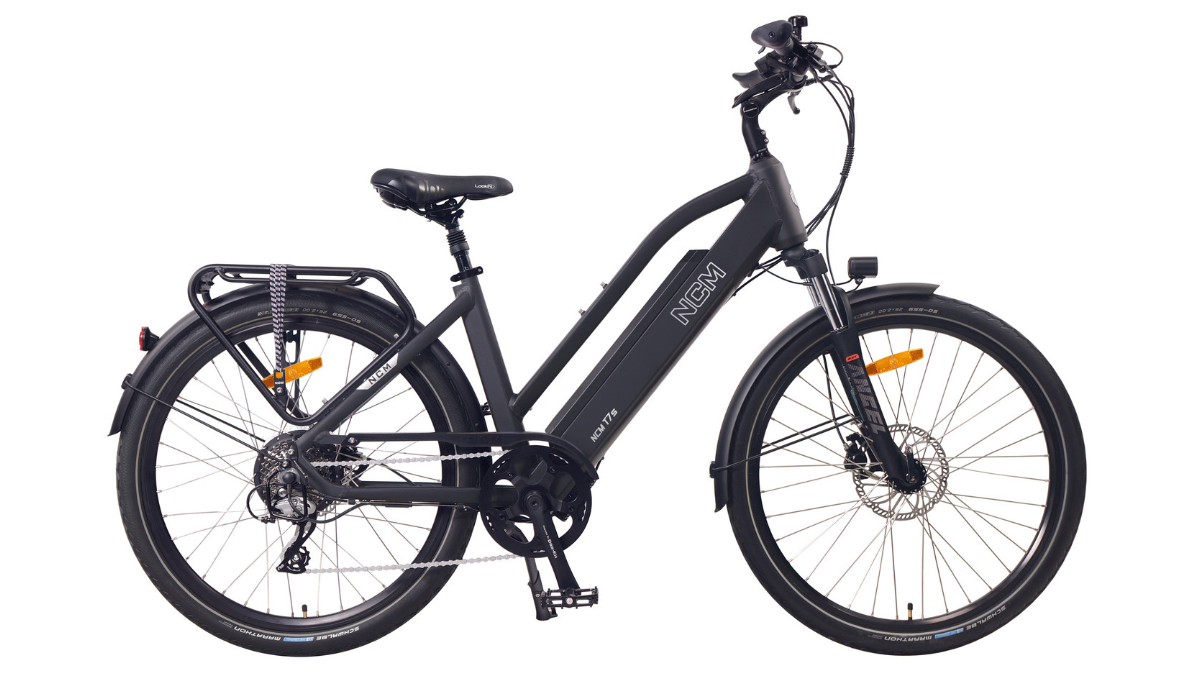

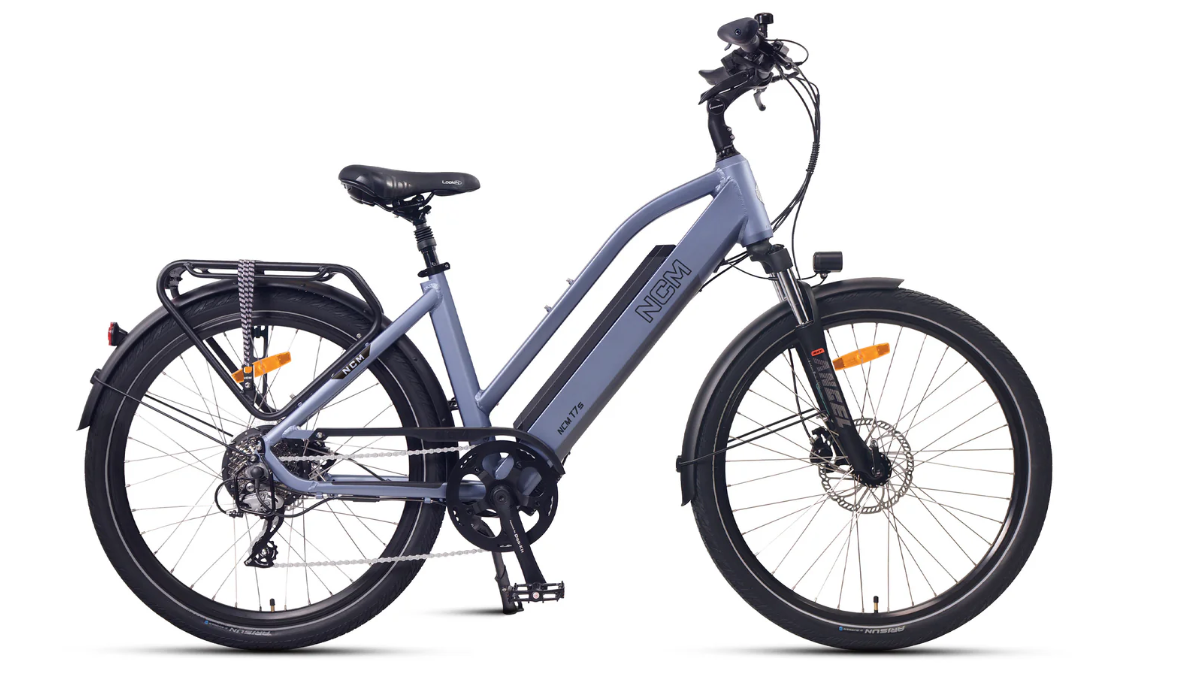

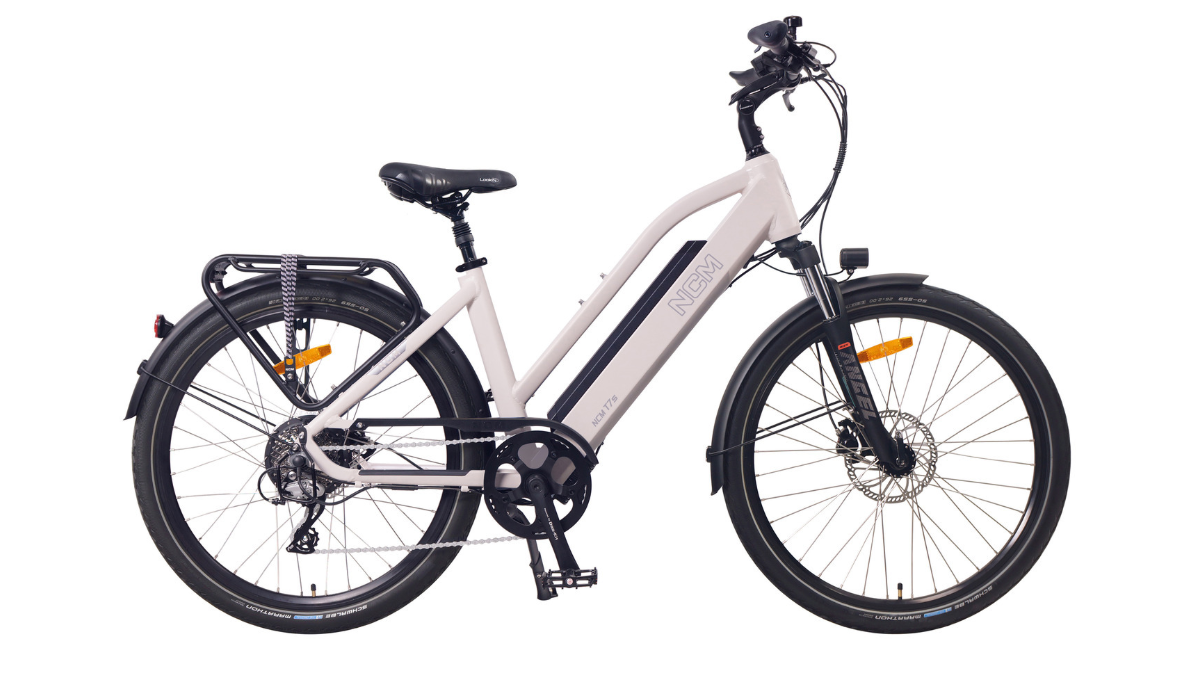

NCM T7s Step Thru Trekking E-Bike

Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders who are eager to tackle longer routes alongside their daily rides and want an e-bike with the range and the integrity to help them do it.

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology

Motor: Das-Kit, X15, rear-drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, T7, 48V 18A

Charger: Das Kit, 48V 3A

Display: Das-Kit, C8, with USB

Front Light: DH007Plus, 48V, 70Lux

BIKE COMPONENTS

Frame: Alu. 6061, 26x430mm, Alu. 6061, 28x460mm

Suspension Fork: RST, ANGEL-TNL 26, with hydraulic lock system, Magnesium

Brake: F: Das-Kit, hydraulic disc brake,DK-100E,180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100,180mm rotor

Freewheel: 8 Speed, 11-32T

Tyre: 26x2.0, 28x2.0

Saddle: Selle Royal, Lookin, Black

Stem: Promax, MA-579

Crank: Das-Kit, 46T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

WEIGHT

Weight (without battery): 25KG

Battery Weight: 4.8KG

Max Load (rider+bike): 140KG
