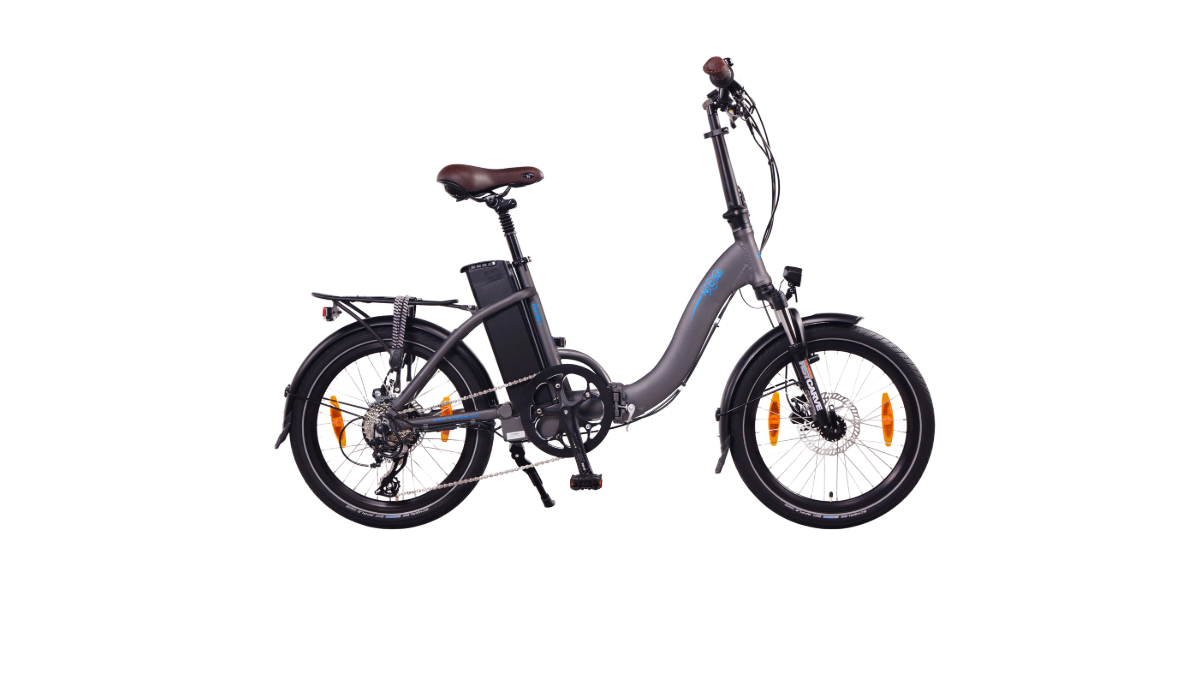

NCM Paris+ Folding E-Bike
NCM Paris+ Folding E-Bike
Couldn't load pickup availability
With a lower tube design and a large rear-mounted battery for extra range. NCM foldable electric bikes are designed to be compact and light weight, whilst also providing high quality strength and reliability.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
BIKE COMPONENTS
Frame: Alu. 6061, 20"*380MM
Suspension Fork: RST Carve, with suspension
Brake: F/R: Tektro hydraulic Disc Brakes, MD-280
Freewheel: LY, LY-1108HFN, 8-speed, 11-32T
Tire: Schwalbe, Big Apple, 20"*2.0
Saddle: Selle Royal, FREEWAY
Crank: Prowheel, SOLID-252AA9, 52T
Seat Post: CL, PB-523, with suspension, 27.2*350mm
Shifter: Shimano Acera, 8 speed
Derailleur: Shimano, Acera, RD-M360, 8-speed
ELECTRIC COMPONENTS
Battery: B1U-3619H, 36V 19Ah, 684W, with USB port
Motor: Das-Kit, R2S Rear-drive motor, 36V 250W, 25KM/H
Controller: Das-Kit, CT4, 36V 14A
Charger: M363AU 36V 3A with XLR plug
Display: Das-Kit, C7, LCD, 6 Levels
Front Light: Spanninga, KENDO, 36V, 20 Lux
Rear Light: Spanninga, SOLO
Weight
Net Weight (with battery): 24.0kg
Battery Weight: 4.1kg
Max Load (driver+bike): 125.0kg
