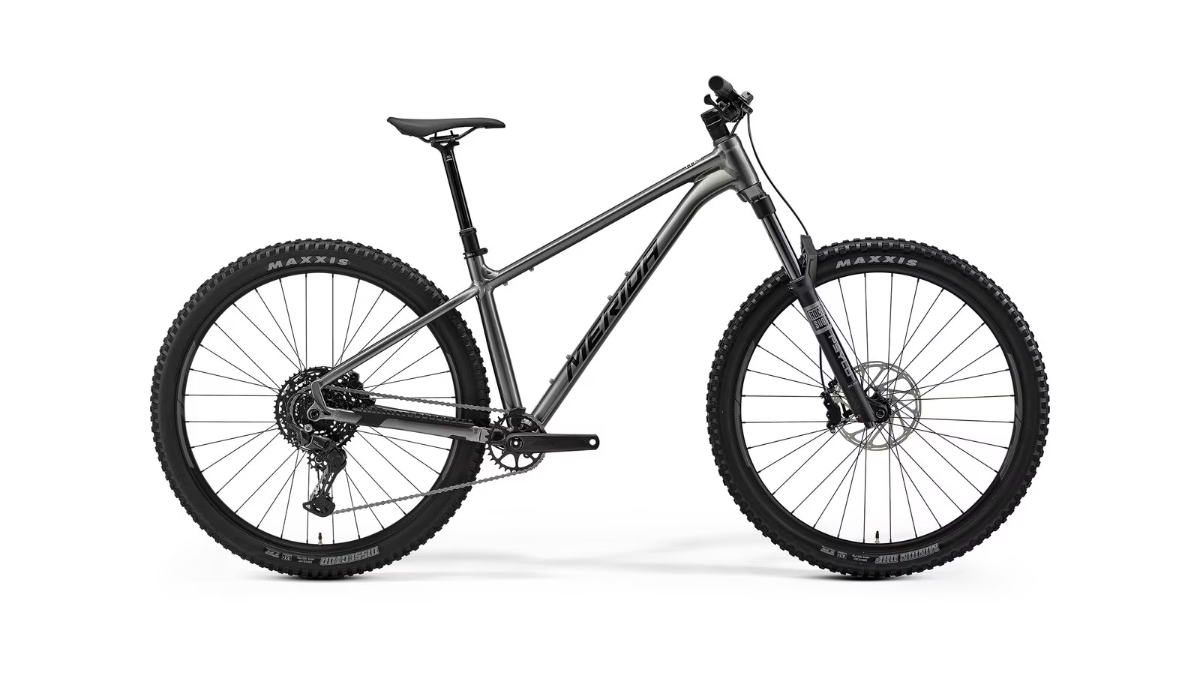

Merida Big Trail 500 Hardtail Trail Bike
Merida Big Trail 500 Hardtail Trail Bike
Couldn't load pickup availability
Trail riding is your passion and you love the simplicity of a hardtail as well as the way it connects you to the track. The test-winning BIG.TRAIL 500 is your perfect companion, featuring a playful yet stable geometry that will deliver confidence and inspires you to go that little bit further. Chunky 29er tyres, a long travel fork and a long dropper post increase that confidence and capability even further.
We often associate 'trail fun' and 'trail capability' with more and more full suspension travel because long-travel bikes are getting more capable on the way down and on the way back up again. At the same time, the trail hardtail has developed quietly in its shadow. After being absent from this segment, we returned to the trails with a bang onboard our BIG.TRAIL. Our test-winning trail hardtails keep impressing the bike press and trail riders and have managed to perfectly combine a modern trail bike geometry with long-travel forks and chunky 29er wheels for amazing corner grip and comfort. Bikeboard.cc confirmed that we 'nailed it', while MBR, MBUK, IMB, Bikeradar and many more confirmed that the BIG.TRAIL is firmly at the top of the trail hardtail game. If you haven't heard or you're not yet a proud owner of it, then welcome to our BIG.TRAIL which offers simplified and hassle-free trail fun in spades. Available from S to XXL giving our BIG.TRAIL ample size and reach options.
|
SEASON |
2026 |
|
AXLES |
R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
|
BRAKES |
F: Sram DB4; 4 piston | R: Sram DB4; 4 piston |
|
CASSETTE |
Shimano LG300; 11-48 ATC; 10 GER |
|
CHAIN |
KMC xGlide |
|
COLOUR |
GUNMETAL GREY(BLACK) |
|
CRANKSET |
MERIDA Expert TR II; 32 ATC; 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG |
|
DERAILLEUR REAR |
Shimano CUES U6000; GS |
|
FORK |
Rock Shox Psylo Silver RC; Air; 140 STR; platform |
|
FRAME |
BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR |
|
GRIP |
MERIDA COMP TR |
|
HANDLEBAR |
MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB |
|
HANDLEBAR STEM |
MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; 40 mm |
|
HEADSET |
Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing |
|
HUBS |
F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
|
RIM |
MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
|
ROTOR FRONT |
Sram CenterLine; 200mm |
|
ROTOR REAR |
Sram CenterLine; 180mm |
|
SADDLE |
MERIDA COMP SL; 25% recycled material; V-mount |
|
SEAT CLAMP |
MERIDA EXPERT |
|
SEAT POST |
MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT |
|
SHIFTERS |
F: Shimano SL-MT500-L | R: Shimano CUES U6000 |
|
SPOKES |
Double Butted Black stainless w/black nipples |
|
TYRES |
F: Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual | R: Maxxis Dissector; 29x2.4"; fold; TR EXO Dual |
